NEW DEVELOPMENTS & NEW DESIGNS |
| |
|
| |

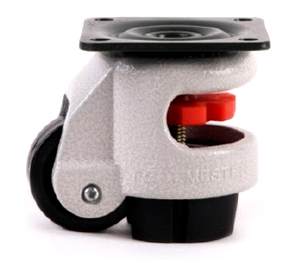

LEVELING CASTORS PLATE MOUNTING
|
| |
|
| |
LEVELING CASTORS (Plate Type) |
| |
| Black Polyamide Heavy Duty wheel fitted to Pressed Carbon Steel Plate type Castor, Spray & Zinc plated with Levelling / Height Adjust / Locking provision |
| |
Wheel Sizes
mm x mm |
Load Castor |
Height
mm |
Top Plate |
50 x 25 |
200 kgs |
92 |
Type 1 |
63 x 30 |
250 kgs |
117 |
Type 2 |
75 x 30 |
300 kgs |
132 |
Type 3 |
|
| |
Standard Plate Sizes: |
| |
Type 1: |
Plate size: 73mm x 73mm,
PCD : 58mm x 58mm x 7mm hole |
Type 1: |
Plate size: 90mm x 90mm,
PCD : 70mm x 70mm x 9mm hole |
Type 1: |
Plate size: 95mm x 95mm,
PCD : 70mm x 70mm x 9mm hole
|
|
| |
| |
| |

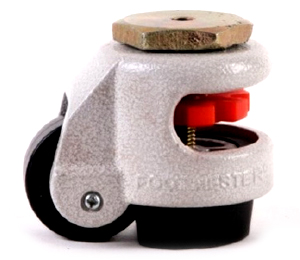

LEVELING CASTORS BOLT HOLE MOUNTING
|
| |
|
| |
| LEVELING CASTORS (Bolt Hole Type) |
| |
| Black Polyamide Heavy Duty wheel fitted to Pressed Carbon Steel Bolt Hole type Castor, Spray & Zinc plated with Levelling/ Height Adjust/ Locking provision |
| |
Wheel Sizes
mm x mm |
Load Castor |
Height
mm |
Top Hole |
50 x 25 |
200 kgs |
92 |
M12 |
63 x 30 |
250 kgs |
117 |
M12 |
75 x 30 |
300 kgs |
132 |
M16 |
|
| |
STANDARD TERMS & CONDITIONS |
| |
MOQ |
40 Pcs |
Delivery |
45-60 days / Ex-Stock |
Payment |
30% Advance / Bal on delivery |
Packing & Fwd |
NIL |
Freight |
TO PAY |
|
| |
| |
| |

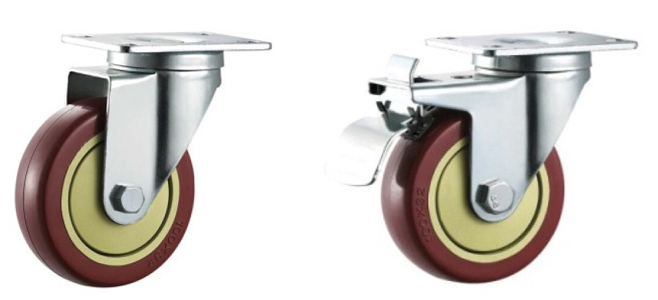

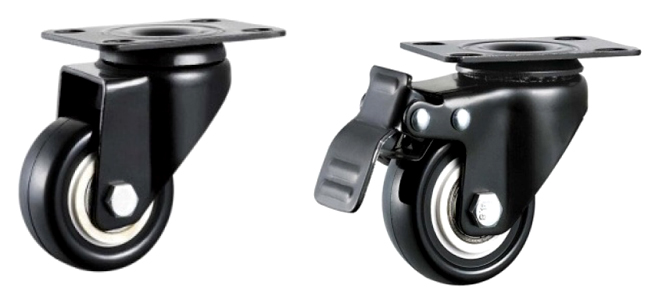

LIGHT DUTY CASTORS (Powder Coated / Zinc Plated)
|
| |
|
| |
| LIGHT DUTY CASTORS (Swivel with Total Lock & Swivel) |
| |
Polyurethane wheels on Nylon Core with Ball Bearings & Bearing Covers fitted to Pressed Sheet MS Powder Coated/ Zinc Plated |
| |
Wheel Sizes
mm x mm
|
Plate Size
mm x mm
|
Hole Dist
mm x mm
|
Height
mm |
50 x 25 |
70 x 50 |
52 x 35 |
73 |
75 x 32 |
95 x 67 |
73 x 45 |
110 |
100 x 32 |
95 x 67 |
73 x 45 |
126 |
125 x 32 |
95 x 67 |
73 x 45 |
157 |
|
| |
|
| |
| |
| |

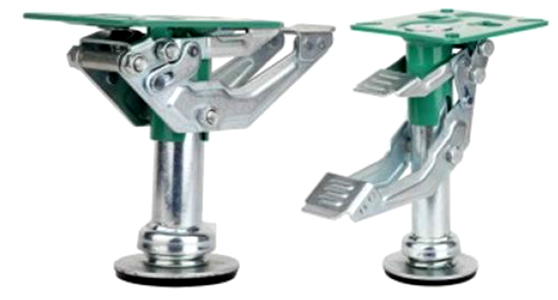

FLOOR LOCKS (Spring Loaded)
|
| |
|
| |
FLOOR LOCKS: (PU BASE) of High Matt Polish Zinc Plating/ Galvanized MS, with double pedal for Lift Lock & Release Unlock, spring loaded, positioning to be fitted alongside castors. |
| |
Wheel Sizes
mm x mm |
Plate Size
mm x mm |
Height
mm |
100 mm dia |
125 mm |
151 mm |
125 mm dia |
140 mm |
180 mm |
150 mm dia |
170 mm |
210 mm |
200 mm dia |
215 mm |
255 mm |
|
| |
Standard Plate of: 137mm x 105mm
Mounting Hole of: 105mm x 80mm x 11mm
Loading Capacity: 200 - 250 Kgs each lock (800 - 1000 kgs per set) |
| |
